I-Lock Rivet

I-Lock Rivet
Material Carbon Steel, Stainless Steel
Standard DIN / ISO
Finish Zinc Plated, HDG, Black, Plain
Brand Yuanmao
Blind Rivet I-Lock Rivet
Inquiry Now Send Email

Product Description

I lock blind rivet are also known as friction lock rivets. I-lock rivet are in higher demand among international customers. The locking mechanism has been engineered into the fastener to create an internal I-lock Rivet during installation that eliminates pin pushout by mechanically locking the pin to the sleeve.

  • Aluminum I lock blind rivets
  • Steel I lock blind rivets
  • Stainless Steel I lock blind rivets

Various lengths and dia of I Lock rivets are as under

  • Dia 4.8 mm I-Lock Rivets ( Lengths: 18.2mm 5mm,27.7mm)
  • Dia 6.4 mm I-Lock Rivets ( Lengths: 30.0mm, 7mm, 36.2mm)
  • Dia 10 mm I-Lock Rivets ( Lengths: 39.4mm)

Customized sizes are also made as per customer drawings and applications

Material

  • Rivet Body – Steel, Mandrel – Steel

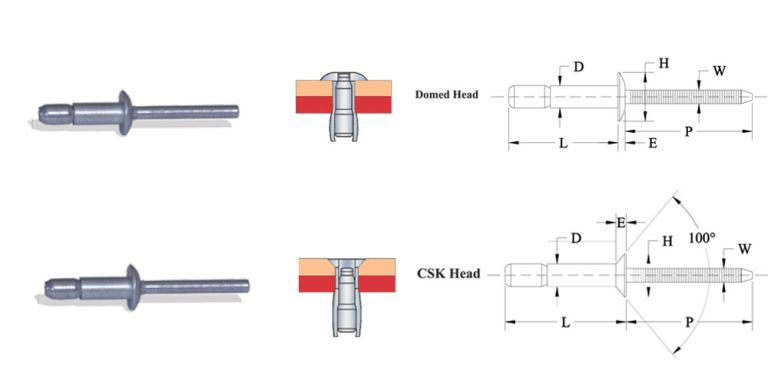

mechanical locking rivets diagram

Key Features

  • Multi-grip capability
  • Fully sealed fastener
  • Excellent hole fill
  • Mechanically locked stem
  • Good sheet take-up performance
I-Lock Steel
Domed Head
Nom Rivet Size (mm)Rivet CodeHole DiaDomed Head DiaHead HeightMandrel DiaMandrel ProtrusionDomed Head Grip RangeI-Lock Rivet Body – Steel Mandrel – Steel
DL  HEWP Tensile Min.Shear Min.Mandrel Break Load
-0.2Max. Min.~ Max.Min.Max.Max.NomMin.Min.~ Max.NLBSNLBS NLBS
4.818.26-14.93~5.189.010.22.33.127.01.57 ~ 6.35444099857801299Min.55601250
25.56-25.44 ~ 11.10
25.56-2.11.57 ~ 11.10Max.68941550
27.76-39.53 ~ 15.88
6.430.07-16.63 ~ 7.0112.013.53.04.127.02.03 ~ 9.5382201847106702398Min.122322750
33.77-28.89 ~ 15.88
36.27-32.03 ~ 15.88Max.140113150
10.039.48-19.96~10.3919.019.64.46.127.03.05 ~ 15.88160103599262405898Min.N/AN/A
Max.N/AN/A
CSK Head
Nom Rivet Size (mm)Rivet CodeHole DiaCSK Head DiaHead HeightMandrel DiaMandrel ProtrusionCSK Head Grip RangeI-Lock Rivet Body – Steel Mandrel – Steel
DL  HEWP Tensile Min.Shear Min.Mandrel Break Load
-0.2Max. Min.~ Max.Min.Max.Max.NomMin.Min.~ Max.NLBSNLBS NLBS
4.820.26-14.93~5.188.59.21.83.127.03.18 ~ 8.41444099857801299Min.55601250
Max.68941550
6.428.47-16.63 ~ 7.0110.711.42.04.127.04.32 ~ 12.0782201847106702398Min.91182050
Max.108982450

Material

  • Rivet Body – Stainless Steel,
    Mandrel – Stainless Steel

Domed head I-lock blind rivets

Key Features

  • Multi-grip capability
  • Fully sealed fastener
  • Excellent hole fill
  • Mechanically locked stem
  • Good sheet take-up performance
I-Lock Stainless Steel
Domed Head
Nom Rivet Size (mm)Rivet CodeHole DiaDomed Head DiaHead HeightMandrel DiaMandrel ProtrusionDomed Head Grip RangeI-Lock Rivet Body – Stainless Steel Mandrel – Stainless Steel
DL  HEWP Tensile Min.Shear Min.Mandrel Break Load
-0.2Max. Min.~ Max.Min.Max.Max.NomMin.Min.~ Max.NLBSNLBS NLBS
4.821.46-14.93~5.189.010.22.33.127.01.57 ~ 6.35444099857801299Min.48931100
25.56-21.57 ~ 11.10Max.62271400
6.428.47-16.63 ~ 7.0112.013.53.04.127.02.03 ~ 9.5382201847106702398Min.91182050
30.07-22.03 ~ 11.10
36.47-32.03 ~ 15.88Max.108982450

Material

  • Rivet Body – Aluminium,
    Mandrel – Aluminium

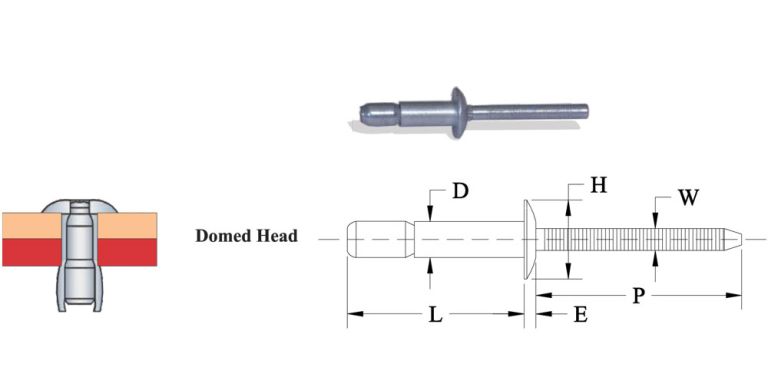

Domed head i lock blind rivets

Key Features

  • Multi-grip capability
  • Fully sealed fastener
  • Excellent hole fill
  • Mechanically locked stem
  • Good sheet take-up performance
I-Lock Aluminium
Domed Head
Nom Rivet Size (mm)Rivet CodeHole DiaDomed Head DiaHead HeightMandrel DiaMandrel ProtrusionDomed Head Grip RangeI-Lock Rivet Body – Aluminium Mandrel – Aluminium
DL  HEWP Tensile Min.Shear Min.Mandrel Break Load
-0.2Max. Min.~ Max.Min.Max.Max.NomMin.Min.~ Max.NLBSNLBS NLBS
4.821.46-14.93~5.189.010.22.33.127.01.57 ~ 6.3520004492400539Min.3336750
22.36-25.44 ~ 11.10
24.86-31.57 ~ 11.10Max.46701050
27.76-49.53 ~ 15.88
6.430.07-16.63 ~ 7.0112.013.53.04.127.02.03 ~ 9.53360080956001258Min.48931100
33.17-28.89 ~ 15.88
35.67-32.03 ~ 15.88Max.62271400

Company Information

Right Product! Reasonable Price! Reliable Service!

Thank you for clicking our product, and if you have any needs or requirements, please kindly contact us, we will reply ASAP.

E-mail: sales@yuanmaosh.com

Packing & Delivery

Packing

Small items are packed in carton boxes, then into wooden pallets. Larger sizes are packed in wooden cases or according to customer requirements.

Delivery

  • Standard items in stock: 7-15 days
  • Custom production: 20-35 days depending on quantity
  • Urgent orders can be accommodated
