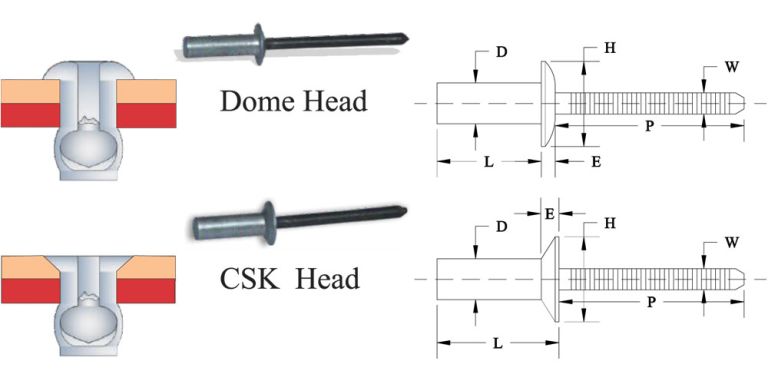

Shanghai Yuanmao FASTENER CO.,LTD manufacture close Type blind rivets in all sizes and styles. Blind Rivets are made as per IFI-114, DIN, and ASME standards. Different head styles are available: dome head closed blind rivets and CSK head close Type  Blind Rivets. These blind rivets are made in 4 material grades:

• Aluminum closed blind Rivets
  Available Grades:Aluminium 1100,  Aluminium 5056
• Steel closed Blind Rivets
• Stainless Steel closed Blind Rivets.
• Copper close type blind rivets

The various diameters and lengths of Rivets are available as per customer applications:

•  3.2 mm closed Blind Rivets
  (Lengths: 6.4 mm, 8.0 mm, 9.6 mm, 12.7 mm, 15.9 mm, 19.3 mm, 25.4 mm)
• 4.0 mm, closed Blind Rivets  (Lengths: 6.4 mm, 8.0 mm, 9.6 mm, 12.7 mm, 15.9 mm, 19.3 mm, 25.4 mm)
• 4.8 mm closed Blind Rivets ( Lengths: 6.4 mm, 8.0 mm, 9.6 mm, 12.7 mm, 15.9 mm, 19.3 mm, 25.4 mm, 31.8 mm, 38.1 mm, 50.8 mm)
• 6.4 mm closed Blind Rivets (Lengths: 9.6 mm,  12.7 mm,  15.9 mm, 19.3 mm, 25.4 mm)

Apart from the sizes mentioned above customized blind rivets are manufactured as per customer drawings and various applications.

Material

• Rivet Body – Aluminium 1100, Mandrel – Aluminium Alloy
• Rivet Body – Aluminium 5056, Mandrel – Steel
• Rivet Body – Aluminium 5056, Mandrel – Stainless Steel
• Rivet Body – Steel, Mandrel – Steel
• Rivet Body – Stainless Steel, Mandrel – Stainless Steel
• Rivet Body – Copper Mandrel – Steel

Key Features

• Seal out moisture, air and other contaminants.
• Higher tensile and shear strength than the equivalent open end rivet.
• 100% mandrel head retention guaranteed.
