Multi Grip Rivet

Material Carbon Steel, Stainless Steel

Standard DIN / ISO

Finish Zinc Plated, HDG, Black, Plain

Brand Yuanmao

Blind Rivet Multi Grip Rivet

Inquiry Now Send Email

Product Description

Shanghai Yuanmao FASTENER CO.,LTD manufacture multi-grip rivet in all sizes and styles. Blind Rivets are made as per IFI-114, DIN, and ASME standards. Different head styles are available as dome head multi-grip blind rivets, CSK head multi-grip Blind Rivets, and Large Flange multi-grip Rivets. These blind rivets are made in 3 material grades,

Aluminium Multigrip blind Rivets
Available Grades: Aluminium 5050, 5052, 5154
Steel Multigrip Blind Rivets
Stainless Steel Multigrip Blind Rivets
Available Grades: Stainless Steel 316, 304

The various diameters and lengths of Multigrip Rivets are available as per customer applications

2.4 mm Multigrip Blind Rivets (Lengths: 4.8 mm, 6.4mm, 8.0mm, 9.6mm, 12.7mm, 15.9mm)
3.2 mm, Multigrip Blind Rivets (Lengths: 6.4mm, 8.0mm, 9.6mm, 12.7mm, 15.9mm, 19.3mm, 25.4mm)
4.0 mm, Multigrip Blind Rivets (Lengths: 6.4mm, 8.0mm, 9.6mm, 12.7mm, 15.9mm, 19.3mm, 25.4mm)
4.8 mm Multigrip Blind Rivets (Lengths: 6.4mm, 8.0mm, 9.6mm, 12.7mm, 15.9mm, 19.3mm, 25.4mm, 31.8mm, 38.1mm,50.8mm)
6.4 mm Multigrip Blind Rivets (Lengths: 9.6mm, 12.7mm, 15.9mm, 19.3mm, 25.4mm)

Apart from the above-mentioned sizes customized blind rivets are manufactured per customer drawings and various applications. Both LF14 and LF16 Multi-grip Rivet are available

Material

Rivet Body – Aluminium 5050, Mandrel – Steel
Rivet Body – Aluminium 5052, Mandrel – Steel

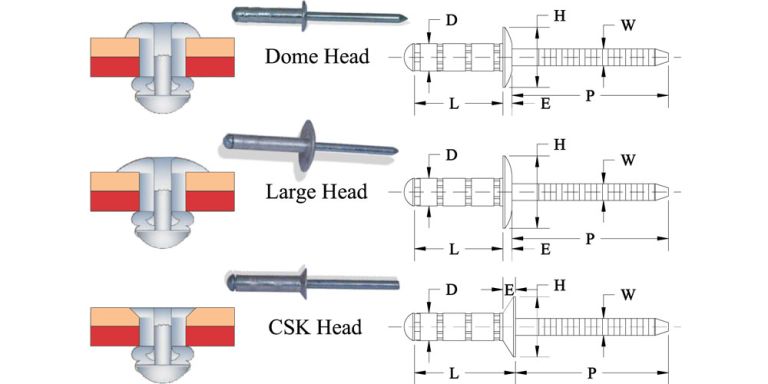

rivets sizes and dimensions

Key Features

Multi-grip capability
Good hole fill
Retained stem
Large blind side bearing area

Multi grip Rivet Aluminium
Nom Rivet Size (Inch)		Nom Rivet Size (mm)		Rivet Code	Hole Dia	Domed Head Dia		Head Height	Large Head Dia		Head Height	CSK 120°±2° Head Dia		CSK 120°±2° Head Height	Mandrel Dia	Mandrel Protrusion	Domed Head Grip Range	CSK 120° Head Grip Range
D	L	D	L			H		E	H		E	H		E	W	P
-0.2	Max.	-0.2	Max.		Min.~ Max.	Min.	Max.	min.	min.	max.	max.	min.	max.	max.	nom	min.	min.~max.	min.~max.
3/32	3/16	2.4	4.8	3-1	2.5~2.6	4.5	5.0	0.8	6.8	7.4	1.0	4.0	4.7	0.7	1.4	27.0	0.5 ~ 1.0	0.5 ~ 1.0
	1/4		6.4	3-2	2.5~2.6	4.5	5.0	0.8	6.8	7.4	1.0	4.0	4.7	0.7	1.4	27.0	0.5 ~ 1.6	0.5 ~ 1.6
	5/16		8.0	3-3	2.5~2.6	4.5	5.0	0.8	6.8	7.4	1.0	4.0	4.7	0.7	1.4	27.0	1.6 ~ 3.2	1.6 ~ 3.2
	3/8		9.6	3-4	2.5~2.6	4.5	5.0	0.8	6.8	7.4	1.0	4.0	4.7	0.7	1.4	27.0	3.2 ~ 4.8	3.2 ~ 4.8
	1/2		12.7	3-5	2.5~2.6	4.5	5.0	0.8	6.8	7.4	1.0	4.0	4.7	0.7	1.4	27.0	4.8 ~ 6.4	4.8 ~ 6.4
	5/8		15.9	3-6	2.5~2.6	4.5	5.0	0.8	6.8	7.4	1.0	4.0	4.7	0.7	1.4	27.0	6.4 ~ 9.6	6.4 ~ 9.6
1/8	1/4	3.2	6.4	4-1	3.3~3.4	6.0	6.6	1.0	9.1	9.9	1.6	5.3	5.9	0.8	1.9	27.0	0.5~1.6	0.5~1.6
	5/16		8.0	4-2	3.3~3.4	6.0	6.6	1.0	9.1	9.9	1.6	5.3	5.9	0.8	1.9	27.0	1.6 ~ 3.2	1.6 ~ 3.2
	3/8		9.6	4-3	3.3~3.4	6.0	6.6	1.0	9.1	9.9	1.6	5.3	5.9	0.8	1.9	27.0	3.2 ~ 4.8	3.2 ~ 4.8
	1/2		12.7	4-4	3.3~3.4	6.0	6.6	1.0	9.1	9.9	1.6	5.3	5.9	0.8	1.9	27.0	4.8 ~ 6.4	4.8 ~ 6.4
	5/8		15.9	4-5	3.3~3.4	6.0	6.6	1.0	9.1	9.9	1.6	5.3	5.9	0.8	1.9	27.0	6.4 ~ 9.6	6.4 ~ 9.6
	3/4		19.3	4-6	3.3~3.4	6.0	6.6	1.0	9.1	9.9	1.6	5.3	5.9	0.8	1.9	27.0	9.6 ~ 12.7	9.6 ~ 12.7
	1.0		25.4	4-7	3.3~3.4	6.0	6.6	1.0	9.1	9.9	1.6	5.3	5.9	0.8	1.9	27.0	16.0 ~ 19.0	16.0 ~ 19.0
5/32	1/4	4.0	6.4	5-1	4.1~4.2	7.5	8.3	1.27	11.3	12.4	1.9	6.8	7.5	1.0	2.4	27.0	0.5 ~ 1.6	0.5 ~ 1.6
	5/16		8.0	5-2	4.1~4.2	7.5	8.3	1.27	11.3	12.4	1.9	6.8	7.5	1.0	2.4	27.0	1.6 ~ 3.2	1.6 ~ 3.2
	3/8		9.6	5-3	4.1~4.2	7.5	8.3	1.27	11.3	12.4	1.9	6.8	7.5	1.0	2.4	27.0	3.2 ~ 4.8	3.2 ~ 4.8
	1/2		12.7	5-4	4.1~4.2	7.5	8.3	1.27	11.3	12.4	1.9	6.8	7.5	1.0	2.4	27.0	4.8 ~ 6.4	4.8 ~ 6.4
	5/8		15.9	5-5	4.1~4.2	7.5	8.3	1.27	11.3	12.4	1.9	6.8	7.5	1.0	2.4	27.0	6.4 ~ 9.6	6.4 ~ 9.6
	3/4		19.3	5-6	4.1~4.2	7.5	8.3	1.27	11.3	12.4	1.9	6.8	7.5	1.0	2.4	27.0	9.6 ~ 12.7	9.6 ~ 12.7
	1.0		25.4	5-7	4.1~4.2	7.5	8.3	1.27	11.3	12.4	1.9	6.8	7.5	1.0	2.4	27.0	16.0 ~ 19.0	16.0 ~ 19.0
3/16	1/4	4.8	6.4	6-1	4.9~5.0	9.0	10.0	1.52	15.2	16.5	2.3	8.5	9.2	1.3	2.8	27.0	0.5~1.6	0.5~1.6
	5/16		8.0	6-2	4.9~5.0	9.0	10.0	1.52	15.2	16.5	2.3	8.5	9.2	1.3	2.8	27.0	1.6~3.2	1.6~3.2
	3/8		9.6	6-3	4.9~5.0	9.0	10.0	1.52	15.2	16.5	2.3	8.5	9.2	1.3	2.8	27.0	3.2~4.8	3.2~4.8
	1/2		12.7	6-4	4.9~5.0	9.0	10.0	1.52	15.2	16.5	2.3	8.5	9.2	1.3	2.8	27.0	4.8 ~ 6.4	4.8 ~ 6.4
	5/8		15.9	6-5	4.9~5.0	9.0	10.0	1.52	15.2	16.5	2.3	8.5	9.2	1.3	2.8	27.0	6.4 ~ 9.6	6.4 ~ 9.6
	3/4		19.3	6-6	4.9~5.0	9.0	10.0	1.52	15.2	16.5	2.3	8.5	9.2	1.3	2.8	27.0	9.6 ~ 12.7	9.6 ~ 12.7
	1.0		25.4	6-7	4.9~5.0	9.0	10.0	1.52	15.2	16.5	2.3	8.5	9.2	1.3	2.8	27.0	16.0 ~ 19.0	16.0 ~ 19.0
	1¼		31.8	6-8	4.9~5.0	9.0	10.0	1.52	15.2	16.5	2.3	8.5	9.2	1.3	2.8	27.0	22.4 ~ 25.4	22.4 ~ 25.4
	1½		38.1	6-9	4.9~5.0	9.0	10.0	1.52	15.2	16.5	2.3	8.5	9.2	1.3	2.8	27.0	28.6 ~ 31.8	28.6 ~ 31.8
	2.0		50.8	6-10	4.9~5.0	9.0	10.0	1.52	15.2	16.5	2.3	8.5	9.2	1.3	2.8	27.0	31.0~35.0	31.0~35.0
1/4	3/8	6.4	9.6	7-1	6.5~6.6	12.0	13.3	2.0	18.2	19.8	2.7	11.6	12.3	1.5	3.8	31.7	3.2~4.8	3.2~4.8
	1/2		12.7	7-2	6.5~6.6	12.0	13.3	2.0	18.2	19.8	2.7	11.6	12.3	1.5	3.8	31.7	4.8 ~ 6.4	4.8 ~ 6.4
	5/8		15.9	7-3	6.5~6.6	12.0	13.3	2.0	18.2	19.8	2.7	11.6	12.3	1.5	3.8	31.7	6.4~9.6	6.4~9.6
	3/4		19.3	7-4	6.5~6.6	12.0	13.3	2.0	18.2	19.8	2.7	11.6	12.3	1.5	3.8	31.7	9.6 ~ 12.7	9.6 ~ 12.7
	1.0		25.4	7-5	6.6~6.6	12.0	13.3	2.0	18.2	19.8	2.7	11.6	12.3	1.5	3.8	31.7	16.0 ~ 19.0	16.0 ~ 19.0

Packing & Delivery

Packing

Small items are packed in carton boxes, then into wooden pallets. Larger sizes are packed in wooden cases or according to customer requirements.

Delivery

Standard items in stock: 7-15 days
Custom production: 20-35 days depending on quantity
Urgent orders can be accommodated
