Shanghai Yuanmao FASTENER CO.,LTD provides a solution of square body insert nuts. The Square body insert nuts provide very high torque-to-turn and pull-out performance in all materials. To increase the load-bearing surface these square insert nuts have a large flange or flat heads.
The square insert nuts are available in Steel Grades, zinc plated trivalent passivated. These are used in thin sheet materials ranging from a grip range of 0.5 to 3 mm. The sizes are as below:
Open End

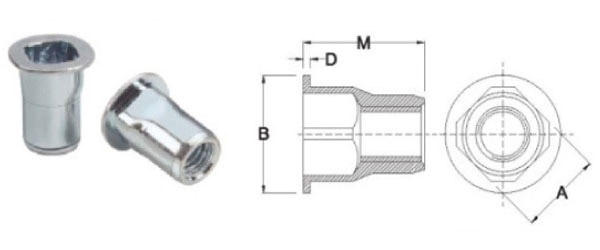

Square Body, Flat Head – Steel
Material :Steel
Finish :Zinc Plated clear trivalent passivated
| Square Body Insert Nut | Metric / 6H | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Square Body, Flat Head – Steel – Europeon | |||||||||||||||||||||
| Thread Size | Grip Size | Hole Size | Body Dia | Body Length | Head Diameter | Head Height | Recommended Max Torque | Pull-out | Torque-To-Turn | Push-out | Part Number | ||||||||||
| (min ~ max) | A (max) | M (+/- 0.2) | B (+/- 0.3) | D (+/- 0.2) | Nm (max) | kN | Nm (min) | kN | |||||||||||||
| M5 X 0.8 | 0.5 ~ 2.0 | 7.30 | 7.00 | 10.4 | 10.5 | 0.6 | 7.9 | 5.5 | 10.2 | 2.4 | M5-SQ-FH-S-E | ||||||||||
| M6 x 1.0 | 0.5 ~ 2.0 | 9.30 | 9.00 | 14.6 | 13.0 | 0.9 | 12.4 | 7.3 | 15.4 | 4.6 | M6-SQ-FH-S-E | ||||||||||
| M8 x 1.25 | 1.0 ~ 3.0 | 11.30 | 11.00 | 17.3 | 17.6 | 1.6 | 32.0 | 10.5 | 34.0 | 6.5 | M8-SQ-FH-S-E | ||||||||||
Thank you for clicking our product, and if you have any needs or requirements, please kindly contact us, we will reply ASAP.
E-mail: sales@yuanmaosh.com
Small items are packed in carton boxes, then into wooden pallets. Larger sizes are packed in wooden cases or according to customer requirements.
