The hex insert nuts are for your Hex Holes sheet applications where a drilled or tapped thread cannot be used for structural reasons. Available in open end and closed end both,Shanghai Yuanmao FASTENER CO.,LTD provides solutions as per customer application requirement. The material grade available for hex insert nuts are
The thread sizes of Semi Hex Reduced Head Insert Nuts are available as per 0.5 to 3 mm grip range (1 GR) and 3 to 6mm grip range (2GR)
Open End

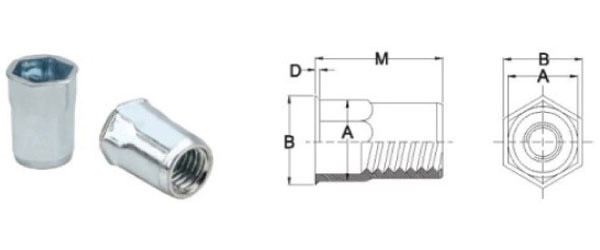

Semi Hex Body, Reduced Head – Steel
Material :Steel
Finish :Zinc Plated clear trivalent passivated
| Semi Hex Reduced Head Insert Nut | Metric / 6H | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Semi Hex Body, Reduced Head – Steel | |||||||||||
| Thread Size | Grip Range | Hole Size | Body Dia | Body Length | Head Diameter | Head Height | Recommended Max Torque | Pull-out | Torque-To-Turn | Push-out | Part Number |
| (min ~ max) | A (max) | M (+/- 0.2) | B (+/- 0.3) | D (+/- 0.2) | Nm (max) | kN | Nm (min) | kN | |||
| M4 X 0.7 | 0.5 ~ 2.5 | 6.35 | 6.25 | 10.5 | 7.0 | 0.5 | 5.1 | 4.2 | 4.0 | 1.3 | M4-SH-RH-S-A |
| M5 X 0.8 | 0.5 ~ 3.0 | 7.20 | 7.09 | 12.0 | 8.0 | 0.5 | 7.9 | 5.9 | 6.6 | 1.9 | M5-SH-RH-S-A |
| M6 x 1.0 | 0.5 ~ 3.3 | 9.60 | 9.50 | 14.5 | 10.6 | 0.6 | 12.4 | 6.9 | 8.7 | 2.4 | M6-SH-RH-S-A |
| M8 X 1.25 | 0.5 ~ 3.5 | 10.60 | 10.50 | 16.0 | 11.5 | 0.6 | 16.4 | 14.8 | 11.8 | 2.8 | M8-SH-RH-S-A |
| M10 X 1.5 | 0.5 ~ 3.8 | 12.70 | 12.60 | 18.8 | 14.0 | 0.8 | 33.9 | 15.0 | 21.0 | 3.2 | M10-SH-RH-S-A |
| Semi Hex Body, Reduced Head – Steel – Europeon | |||||||||||
| M4 X 0.7 | 0.5 ~ 2.5 | 6.0 | 5.95 | 10.5 | 7.0 | 0.5 | 5.1 | 6.3 | 4.2 | 1.4 | M4-SH-RH-S-E |
| M5 X 0.8 | 0.5 ~ 3.0 | 7.0 | 6.95 | 11.7 | 8.0 | 0.5 | 7.9 | 8.8 | 7.5 | 2.6 | M5-SH-RH-S-E |
| M6 x 1.0 | 0.5 ~ 3.3 | 9.0 | 8.95 | 14.5 | 10.0 | 0.6 | 12.4 | 14.4 | 10.7 | 3.2 | M6-SH-RH-S-E |
| M8 X 1.25 | 0.5 ~ 3.5 | 11.0 | 10.95 | 16.5 | 12.0 | 0.6 | 32.0 | 15.0 | 22.7 | 4.1 | M8-SH-RH-S-E |
| M10 X 1.5 | 0.5 ~ 3.8 | 13.0 | 12.95 | 20.0 | 14.5 | 0.8 | 45.0 | 19.7 | 38.5 | 5.2 | M10-SH-RH-S-E |
| Semi Hex Body, Reduced Head – Long – Steel – Europeon | |||||||||||
| M5 X 0.8 | 3.0 ~ 5.5 | 7.0 | 6.95 | 15.2 | 8.0 | 0.5 | 7.9 | 8.8 | 7.5 | 2.6 | M5-SH-RH-L-S-E |
| M6 x 1.0 | 3.0 ~ 5.5 | 9.0 | 8.95 | 17.5 | 10.0 | 0.6 | 12.4 | 14.4 | 10.7 | 3.2 | M6-SH-RH-L-S-E |
| M8 X 1.25 | 3.0 ~ 5.5 | 11.0 | 10.95 | 20.0 | 12.0 | 0.6 | 32.0 | 15.0 | 22.7 | 4.1 | M8-SH-RH-L-S-E |
Close End

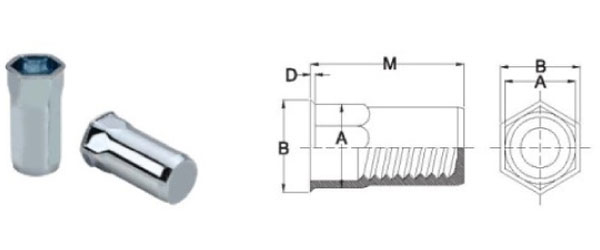

Semi Hex Body, Reduced Head – Close Type – Steel
Material :Steel
Finish :Zinc Plated clear trivalent passivated
| Semi Hex Body, Reduced Head – Close Type – Steel – Europeon | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Thread Size | Grip Range | Hole Size | Body Dia | Body Length | Head Diameter | Head Height | Recommended Max Torque | Pull-out | Torque-To-Turn | Push-out | Part Number |
| (min ~ max) | A (max) | M (+/- 0.2) | B (+/- 0.3) | D (+/- 0.2) | Nm (max) | kN | Nm (min) | kN | |||
| M4 X 0.7 | 0.5 ~ 2.5 | 6.0 | 5.95 | 16.3 | 7.0 | 0.5 | 5.1 | 6.3 | 4.2 | 1.4 | M4-SH-RH-CT-S-E |
| M5 X 0.8 | 0.5 ~ 3.0 | 7.0 | 6.95 | 18.3 | 8.0 | 0.5 | 7.9 | 8.8 | 7.5 | 2.6 | M5-SH-RH-CT-S-E |
| M6 x 1.0 | 0.5 ~ 3.3 | 9.0 | 8.95 | 21.3 | 10 | 0.6 | 12.4 | 14.4 | 11.9 | 5.3 | M6-SH-RH-CT-S-E |
| M8 X 1.25 | 0.5 ~ 3.5 | 11 | 10.95 | 23.8 | 12 | 0.6 | 32.0 | 15.0 | 25.0 | 8.0 | M8-SH-RH-CT-S-E |
Open End

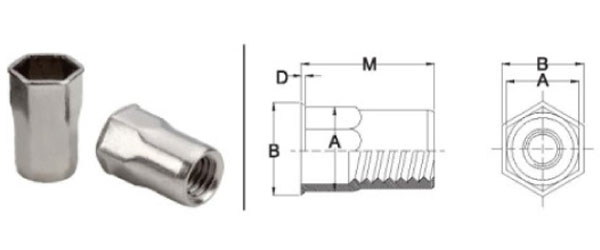

Semi Hex Body, Reduced Head – Stainless Steel
Material :Stainless Steel
Finish :Natural
| Semi Hex Reduced Head Insert Nut | Metric / 6H | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Semi Hex Body, Reduced Head – Stainless Steel – Europeon | |||||||||||
| Thread Size | Grip Range | Hole Size | Body Dia | Body Length | Head Diameter | Head Height | Recommended Max Torque | Pull-out | Torque-To-Turn | Push-out | Part Number |
| (min ~ max) | A (max) | M (+/- 0.2) | B (+/- 0.3) | D (+/- 0.2) | Nm (max) | kN | Nm (min) | kN | |||
| M4 X 0.7 | 0.5 ~ 2.5 | 6 | 5.95 | 11 | 7 | 0.5 | 5.1 | 6.3 | 4.2 | 1.4 | M4-SH-RH-ST-E |
| M5 X 0.8 | 0.5 ~ 3.0 | 7 | 6.95 | 12 | 8 | 0.5 | 7.9 | 8.8 | 7.5 | 2.6 | M5-SH-RH-ST-E |
| M6 x 1.0 | 0.5 ~ 3.0 | 9 | 8.95 | 14 | 10 | 0.5 | 12.4 | 14.4 | 10.7 | 3.2 | M6-SH-RH-ST-E |
| M8 X 1.25 | 0.5 ~ 3.5 | 11 | 10.95 | 16.0 | 12 | 0.5 | 32 | 15 | 22.7 | 4.1 | M8-SH-RH-ST-E |
| M10 X 1.5 | 0.7 ~ 3.8 | 13 | 12.95 | 19 | 14.2 | 0.8 | 45 | 19.7 | 38.5 | 5.2 | M10-SH-RH-ST-E |
| Semi Hex Body, Reduced Head – Long – Stainless Steel – Europeon | |||||||||||
| M4 X 0.7 | 2.5 ~ 4.0 | 6 | 5.95 | 12.8 | 7 | 0.5 | 5.1 | 6.3 | 4.2 | 1.4 | M4-SH-RH-L-ST-E |
| M5 X 0.8 | 2.5 ~ 4.5 | 7 | 6.95 | 15.2 | 8 | 0.5 | 7.9 | 8.8 | 7.5 | 2.6 | M5-SH-RH-L-ST-E |
| M6 x 1.0 | 3.0 ~ 5.0 | 9 | 8.95 | 17.2 | 10 | 0.5 | 12.4 | 14.4 | 10.7 | 3.2 | M6-SH-RH-L-ST-E |
| M8 X 1.25 | 3.0 ~ 5.5 | 11 | 10.95 | 18.7 | 12 | 0.5 | 32 | 15.0 | 22.7 | 4.1 | M8-SH-RH-L-ST-E |
| M10 X 1.5 | 3.5 ~ 6.0 | 13 | 12.95 | 21.5 | 14 | 0.6 | 45 | 19.7 | 38.5 | 5.2 | M10-SH-RH-S-E |
Close End

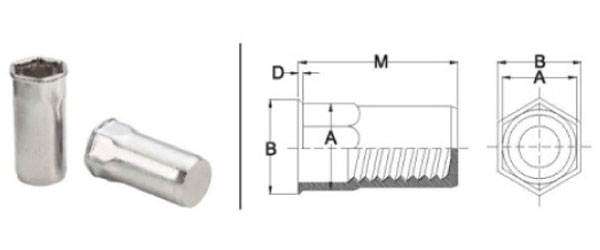

Semi Hex Body, Reduced Head – Close Type – Stainless Steel
Material :Stainless Steel
Finish :Natural
| Semi Hex Body, Reduced Head – Close Type – Stainless Steel – Europeon | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Thread Size | Grip Range | Hole Size | Body Dia | Body Length | Head Diameter | Head Height | Recommended Max Torque | Pull-out | Torque-To-Turn | Push-out | Part Number |
| (min ~ max) | A (max) | M (+/- 0.2) | B (+/- 0.3) | D (+/- 0.2) | Nm (max) | kN | Nm (min) | kN | |||
| M4 X 0.7 | 0.5 ~ 2.5 | 6.0 | 5.95 | 16.0 | 7.0 | 0.5 | 5.1 | 6.3 | 4.2 | 1.4 | M4-SH-RH-CT-ST-E |
| M5 X 0.8 | 0.5 ~ 3.0 | 7.0 | 6.95 | 18.3 | 8.0 | 0.5 | 7.9 | 8.8 | 7.5 | 2.6 | M5-SH-RH-CT-ST-E |
| M6 x 1.0 | 0.5 ~ 3.0 | 9.0 | 8.95 | 21.0 | 10 | 0.5 | 12.4 | 14.4 | 10.7 | 3.2 | M6-SH-RH-CT-ST-E |
| M8 X 1.25 | 0.5 ~ 3.0 | 11 | 10.95 | 23.5 | 12 | 0.5 | 32.0 | 15.0 | 22.7 | 4.1 | M8-SH-RH-CT-ST-E |
| M10 X 1.5 | 1.0 ~ 3.5 | 13.00 | 12.95 | 26.5 | 14.0 | 0.7 | 45.0 | 19.7 | 38.5 | 5.2 | M10-SH-RH-CT-ST-E |
