Semi Hex Large Flat Insert Nut rivet nut

Semi Hex Large Flat Insert Nut rivet nut
Material Carbon Steel, Stainless Steel
Standard DIN / ISO
Finish Zinc Plated, HDG, Black, Plain
Brand Yuanmao
Insert Nut Semi Hex Large Flat Insert Nut rivet nut
Inquiry Now Send Email

Product Description

Available in open end and closed end both,Shanghai Yuanmao FASTENER CO.,LTD  provides solutions of Semi Hex inserts as per customer application requirement. The material grade available for semi hex insert nuts are

  • Steel Semi Hex Flat Head Insert Nuts, Zinc Plated clear trivalent passivated
  • Stainless Steel Semi Hex Flat Head Insert Nuts.

The thread sizes of Semi Hex Flat Head Insert Nuts are available as per 0.5 to 3 mm grip range (1 GR) and 3 to 6mm grip range (2GR)

  • M4 Semi Hex Flat Head Open Insert Nuts / M4 Semi Hex Reduced Head Closed Insert Nuts
  • M5 Semi Hex Flat Head Open Insert Nuts / M5 Semi Hex Reduced Head Closed Insert Nuts
  • M6 Semi Hex Flat Head Open Insert Nuts / M6 Semi Hex Reduced Head Closed Insert Nuts
  • M8 Semi Hex Flat Head Open Insert Nuts / M8 Semi Hex Reduced Head Closed Insert Nuts
  • M10 Semi Hex Flat Head Open Insert Nuts / M10 Semi Hex Reduced Head Closed Insert Nuts



Open End

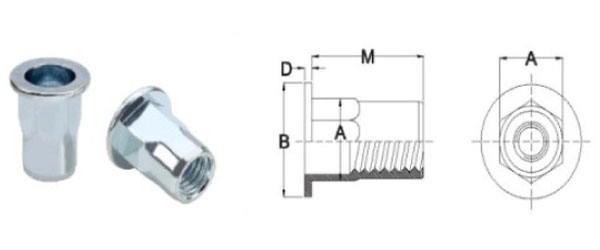

Semi Hex Body, Flat Head – Steel

Material :Steel

Finish :Zinc Plated clear trivalent passivated

Large Flat Insert Nuts

Semi Hex Large Flat Insert NutMetric / 6H
Semi Hex Body, Flat Head – Steel – Europeon
Thread SizeGrip RangeHole SizeBody DiaBody LengthHead DiameterHead HeightRecommended Max TorquePull-outTorque-To-TurnPush-outPart Number
 (min ~ max)A (max)M (+/- 0.2)B (+/- 0.3)D (+/- 0.2)Nm (max)kNNm (min)kN
M4 X 0.70.5 ~ 2.56.05.959.09.01.05.16.34.52.2M4-SH-FH-S-E
M5 X 0.80.5 ~ 3.07.06.9512.010.01.07.98.88.63.6M5-SH-FH-S-E
M6 x 1.00.5 ~ 3.39.08.9514.513.01.512.414.411.95.3M6-SH-FH-S-E
M8 X 1.250.5 ~ 3.311.010.9516.516.01.532.015.025.08.0M8-SH-FH-S-E
M10 X 1.50.5 ~ 3.513.012.9520.019.02.045.019.745.29.2M10-SH-FH-S-E
Semi Hex Body, Flat Head – Long – Steel – Europeon
M4 X 0.70.5 ~ 2.56.05.9511.09.01.05.46.34.52.2M4-SH-FH-L-S-E
M5 X 0.80.5 ~ 3.07.06.9514.710.01.07.98.88.63.6M5-SH-FH-L-S-E
M6 x 1.00.5 ~ 3.39.08.9516.513.01.512.414.411.95.3M6-SH-FH-L-S-E
M8 X 1.250.5 ~ 3.311.010.9519.016.01.532.015.025.08.0M8-SH-FH-L-S-E
M10 X 1.50.5 ~ 3.513.012.9521.019.02.045.019.745.29.2M10-SH-FH-L-S-E



Close End

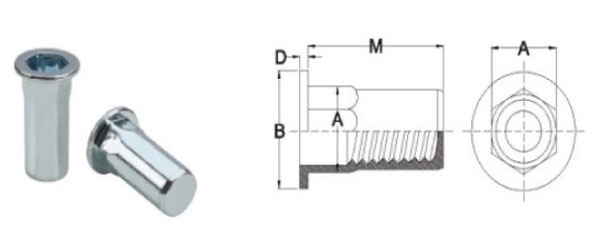

Semi Hex Body, Flat Head – Close Type – Steel

Material :Steel

Finish :Zinc Plated clear trivalent passivated

semi hex rivet nut manufacturer India

Semi Hex Body, Flat Head – Close Type – Steel – Europeon
Thread SizeGrip RangeHole SizeBody DiaBody LengthHead DiameterHead HeightRecommended Max TorquePull-outTorque-To-TurnPush-outPart Number
 (min ~ max)A (max)M (+/- 0.2)B (+/- 0.3)D (+/- 0.2)Nm (max)kNNm (min)kN
M4 X 0.70.5 ~ 2.56.05.9516.09.01.05.16.34.52.2M4-SH-FH-CT-S-E
M5 X 0.80.5 ~ 3.07.06.9518.010.01.07.98.88.63.6M5-SH-FH-CT-S-E
M6 x 1.00.5 ~ 3.09.08.9521.013.01.512.414.411.95.3M6-SH-FH-CT-S-E
M8 X 1.250.5 ~ 3.011.010.9524.516.01.532.015.025.08.0M8-SH-FH-CT-S-E
M10 X 1.51.0 ~ 3.513.012.9526.517.02.045.019.745.29.2M10-SH-FH-CT-S-E



Open End

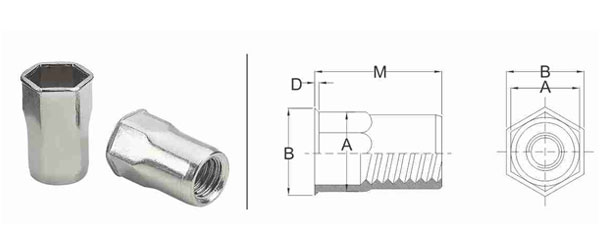

Semi Hex Body, Flat Head – Stainless Steel

Material :Stainless Steel

Finish :Natural

metal sheet fastening insert nut

Semi Hex Body, Flat Head – Stainless Steel – Europeon
Thread SizeGrip RangeHole SizeBody DiaBody LengthHead DiameterHead HeightRecommended Max TorquePull-outTorque-To-TurnPush-outPart Number
 (min ~ max)A (max)M (+/- 0.2)B (+/- 0.3)D (+/- 0.2)Nm (max)kNNm (min)kN
M4 X 0.70.5 ~ 2.56.05.9511.09.01.05.16.34.52.2M4-SH-FH-ST-E
M5 X 0.80.5 ~ 3.07.06.9512.010.01.07.98.88.63.6M5-SH-FH-ST-E
M6 x 1.00.5 ~ 3.09.08.9514.012.01.512.414.411.95.3M6-SH-FH-ST-E
M8 X 1.250.5 ~ 3.011.010.9516.015.01.532.015.025.08.0M8-SH-FH-ST-E
M10 X 1.50.5 ~ 4.013.012.9520.018.02.045.019.745.29.2M10-SH-FH-ST-E



Close End

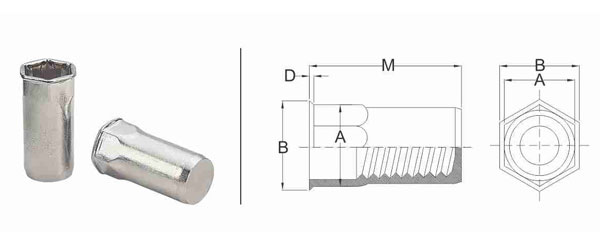

Semi Hex Body, Flat Head – Close Type – Stainless Steel

Material :Stainless Steel

Finish :Natural

Semi Hex Large Flat Insert Nut

Semi Hex Body, Flat Head – Close Type – Stainless Steel – Europeon
Thread SizeGrip RangeHole SizeBody DiaBody LengthHead DiameterHead HeightRecommended Max TorquePull-outTorque-To-TurnPush-outPart Number
 (min ~ max)A (max)M (+/- 0.2)B (+/- 0.3)D (+/- 0.2)Nm (max)kNNm (min)kN
M4 X 0.70.5 ~ 2.56.05.9516.09.01.05.16.34.52.2M4-SH-FH-CT-ST-E
M5 X 0.80.5 ~ 3.07.06.9518.010.01.07.98.88.63.6M5-SH-FH-CT-ST-E
M6 x 1.00.5 ~ 3.09.08.9521.012.01.512.414.411.95.3M6-SH-FH-CT-ST-E
M8 X 1.250.5 ~ 3.011.010.9523.515.01.532.015.025.08.0M8-SH-FH-CT-ST-E
M10 X 1.51.0 ~ 3.513.012.9526.517.02.045.019.745.29.2M10-SH-FH-CT-ST-E
