H-Lock Rivet

H-Lock Rivet
Material Carbon Steel, Stainless Steel
Standard DIN / ISO
Finish Zinc Plated, HDG, Black, Plain
Brand Yuanmao
Blind Rivet H-Lock Rivet
Inquiry Now Send Email

Product Description

H-Lock rivet are structural break stem fasteners with exceptional shear and tensile strength. The grooved mandrel ensures safe locking. H lock rivet is also a high-strength structural rivet. H-Lock rivet are available in

  • Aluminium H-Lock rivets
  • Steel H-Lock rivets

Diameters and lengths available in H-Lock rivets are:

  • 6.4 mm H-Lock rivets ( Lengths: 9.4mm, 10.7mm, 11.3mm, 12.7mm, 14.7mm, 15.4mm, 15.7mm, 16.7mm, 18.7mm, 20.4mm)
  • 7.8 mm H-Lock rivets ( Lengths: 13.5mm, 16.5mm, 19.5mm, 22.5mm)

Material

  • Rivet Body – Steel, Mandrel – Steel
H lock rivets for automotive use

Key Features

  • Very high shear and tensile strength
  • Large blind side bearing area
  • Interference lock via splined Stem
H-Lock – Steel

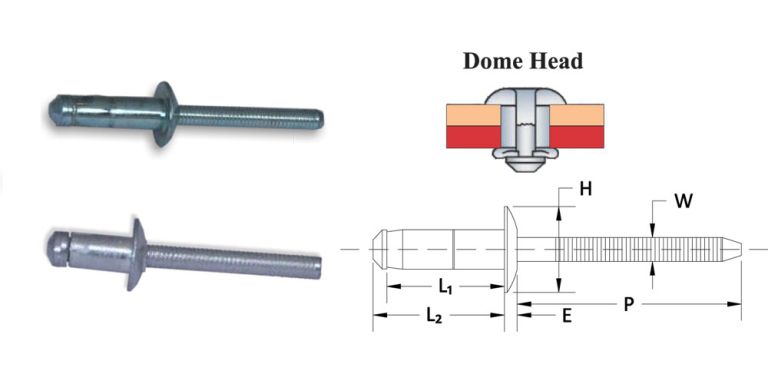

 Rivet Size (mm)Rivet CodeHole DiaDomed Head DiaHead HeightMandrel DiaMandrel ProtrusionDomed Head Grip RangeH Lock Rivet Body – Steel Mandrel – Steel
DL₁DL₂  HEWP Tensile Min.Shear Min.Mandrel Break Load
-0.2Max.-0.2Max. Min.~ Max.Min.Max.Max.NomMin.Min.~ Max.NLBSNLBS NLBS
6.49.46.413.77-16.5~6.712.813.42.74.127.01.50 ~ 3.5088001978105002360Min.137893100
10.715.07-26.5~6.712.813.42.74.127.02.80 ~ 4.8088001978120002698
11.315.67-36.5~6.712.813.42.74.127.03.40 ~ 5.4088001978120002698
12.717.07-46.5~6.712.813.42.74.127.04.80 ~ 6.8088001978125002810
14.719.07-56.5~6.712.813.42.74.127.06.80 ~ 8.8088001978140003147
15.420.07-66.5~6.712.813.42.74.127.07.50 ~ 8.8088001978140003147Max.155683500
15.720.07-76.5~6.712.813.42.74.127.07.80 ~ 9.8088001978140003147
16.721.07-86.5~6.712.813.42.74.127.08.80 ~ 10.8088001978160003597
18.723.07-96.5~6.712.813.42.74.127.010.80 ~ 12.8088001978160003597
20.424.87-106.5~6.712.813.42.74.127.012.60 ~ 14.6088001978160003597
7.813.57.817.58-18.1~8.316.018.04.25.128.04.0 ~ 7.091002046135003035
16.520.58-28.1~8.316.018.04.25.128.007.0 ~ 10.091002046160003597
19.523.58-38.1~8.316.018.04.25.128.0010.0 ~ 13.091002046160003597
22.526.58-48.1~8.316.018.04.25.128.013.0 ~ 16.091002046160003597

Material

  • Rivet Body – Aluminium, Mandrel – Aluminium

Key Features

  • Very high shear and tensile strength
  • Large blind side bearing area
  • Interference lock via splined Stem
H-Lock – Aluminium
 Rivet Size (mm)Rivet CodeHole DiaDomed Head DiaHead HeightMandrel DiaMandrel ProtrusionDomed Head Grip RangeH Lock Rivet Body – Steel Mandrel – Steel
DL₁DL₂  HEWP Tensile Min.Shear Min.Mandrel Break Load
-0.2Max.-0.2Max. Min.~ Max.Min.Max.Max.NomMin.Min.~ Max.NLBSNLBS NLBS
6.49.46.413.77-16.5~6.712.813.42.74.127.01.50 ~ 3.50267060050001124Min.55601250
10.715.07-26.5~6.712.813.42.74.127.02.80 ~ 4.80267060060001348
11.315.67-36.5~6.712.813.42.74.127.03.40 ~ 5.40267060062001393
12.717.07-46.5~6.712.813.42.74.127.04.80 ~ 6.80267060065001461Max.73391650
14.719.07-56.5~6.712.813.42.74.127.06.80 ~ 8.80267060070001573
16.721.07-86.5~6.712.813.42.74.127.08.80 ~ 10.80267060070001573
18.723.07-96.5~6.712.813.42.74.127.010.80 ~ 12.80267060070001573
