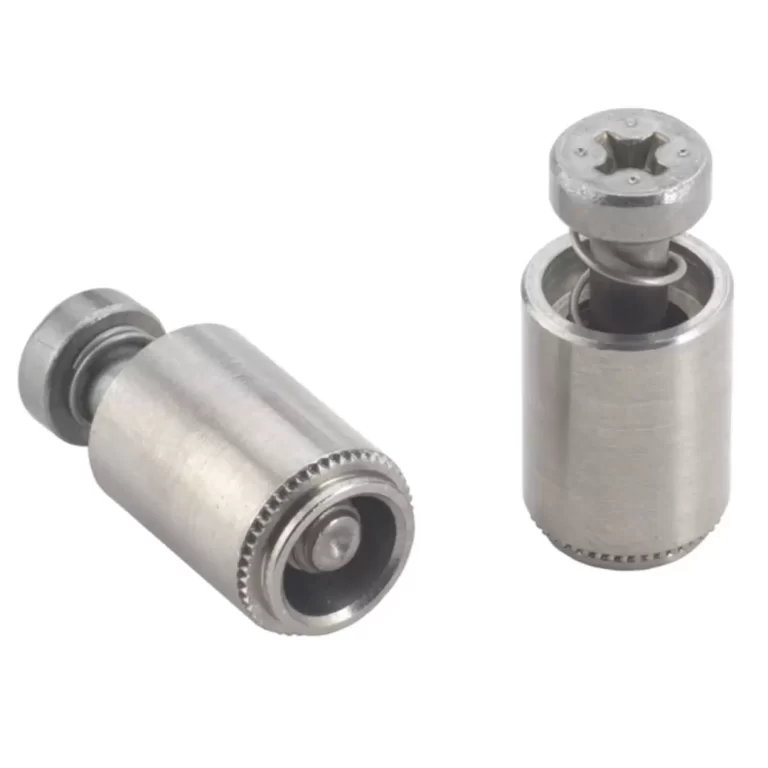

Panel Fasteners

Material Carbon Steel, Stainless Steel

Standard DIN / ISO

Finish Zinc Plated, HDG, Black, Plain

Brand Yuanmao

Self Clinching Fasteners Panel Fasteners

Inquiry Now Send Email

Product Description

Panel Fasteners

For use in modern fabrications, panel fasteners come in all different shapes, materials,s and thread sizes.Shanghai Yuanmao FASTENER CO.,LTD keep all types of panel fasteners as per customer-specific requirements. Panel fasteners are designed to help keep parts to a minimum risk associated with loose hardware that could fall out and damage the internal components. Panel fasteners are hence used to attach metal parts or components in applications where subsequent access is necessary.

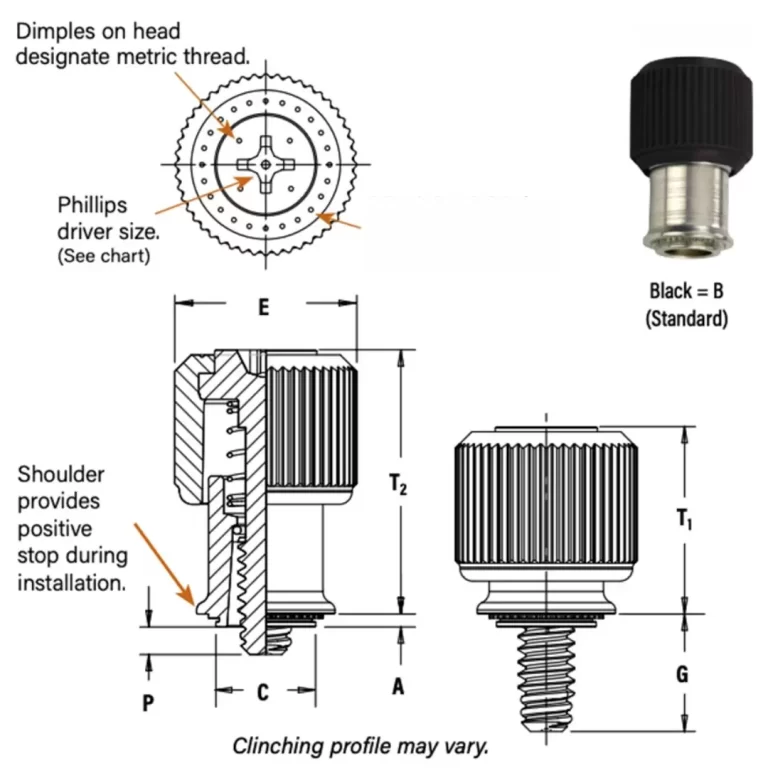

PF 11 PANEL FASTENERS

Universal Phillips/slot drive (except for plastic cap).
The shoulder on retainer to provide a positive stop during
Anti-cross-threading feature. Eases assembly, aligns components, improves assembly line productivity, prevents jamming, and slides through clogged internal

Thread Size x Pitch	Type Knurled Cap	Thread Code	Screw Length Code
M3 x 0.5	PF11	M3	0
			1
			2
M3.5 x 0.6	PF11	M3.5	0
			1
			2
M4 x 0.7	PF11	M4	0
			1
			2
M5 x 0.8	PF11	M5	0
			1
			2
M6 x 1	PF11	M6	0
			1
			2

Thread Size	Type Knurled Cap	Thread Code	Screw Length Code
.112-40 (#4-40)	PF11	440	0
			1
			2
.138-32 (#6-32)	PF11	632	0
			1
			2
.164-32 (#8-32)	PF11	832	0
			1
			2
.190-32 (#10-32)	PF11	032	0
			1
			2
.250-20 (1/4-20)	PF11	0420	0
			1
			2

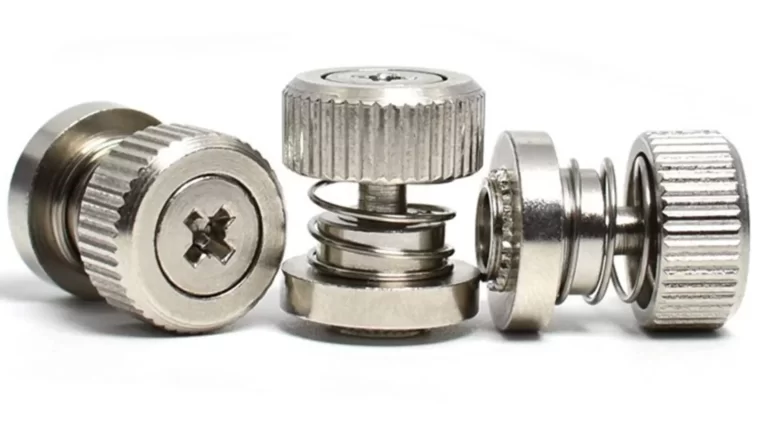

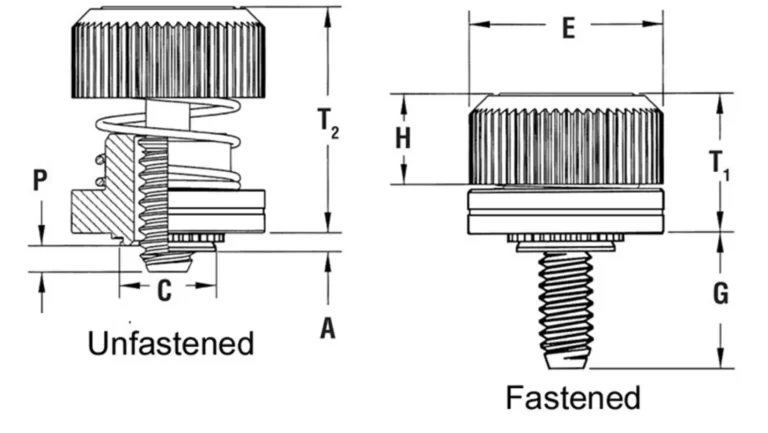

PF 50/PF 60 PANEL FASTENERS

PF50 and PF60 are low-profile knob, spring-loaded captive panel screws

Thread Size	Type Knurled Cap	Smooth Cap	Thread Code	Screw Length Code
.112-40 (#4-40)	PF50	PF60	440	0
	PF50	PF60	440	1
	PF51	PF61	440	0
	PF51	PF61	440	1
	PF52	PF62	440	0
	PF52	PF62	440	1
.138-32 (#6-32)	PF50	PF60	632	0
	PF50	PF60	632	1
	PF51	PF61	632	0
	PF51	PF61	632	1
	PF52	PF62	632	0
	PF52	PF62	632	1
.164-32 (#8-32)	PF50	PF60	832	0
	PF50	PF60	832	1
	PF51	PF61	832	0
	PF51	PF61	832	1
	PF52	PF62	832	0
	PF52	PF62	832	1
.190-32 (#10-32)	PF50	PF60	032	0
	PF50	PF60	032	1
	PF51	PF61	032	0
	PF51	PF61	032	1
	PF52	PF62	032	0
	PF52	PF62	032	1
.250-20 (1/4-20)	PF52	PF62	0420	0
.250-20 (1/4-20)	PF52	PF62	0420	1

Thread Size X pitch	Type Knurled Cap	Smooth Cap	Thread Code	Screw Length Code
M3 x 0.5	PF50	PF60	M3	0
	PF50	PF60	M3	1
	PF51	PF61	M3	0
	PF51	PF61	M3	1
	PF52	PF62	M3	0
	PF52	PF62	M3	1
M3.5 x 0.6	PF50	PF60	M3.5	0
	PF50	PF60	M3.5	1
	PF51	PF61	M3.5	0
	PF51	PF61	M3.5	1
	PF52	PF62	M3.5	0
	PF52	PF62	M3.5	1
M4 x 0.7	PF50	PF60	M4	0
	PF50	PF60	M4	1
	PF51	PF61	M4	0
	PF51	PF61	M4	1
	PF52	PF62	M4	0
	PF52	PF62	M4	1
M5 x 0.8	PF50	PF60	M5	0
	PF50	PF60	M5	1
	PF51	PF61	M5	0
	PF51	PF61	M5	1
	PF52	PF62	M5	0
	PF52	PF62	M5	1
M6 x 1	PF52	PF62	M6	0
M6 x 1	PF52	PF62	M6	1

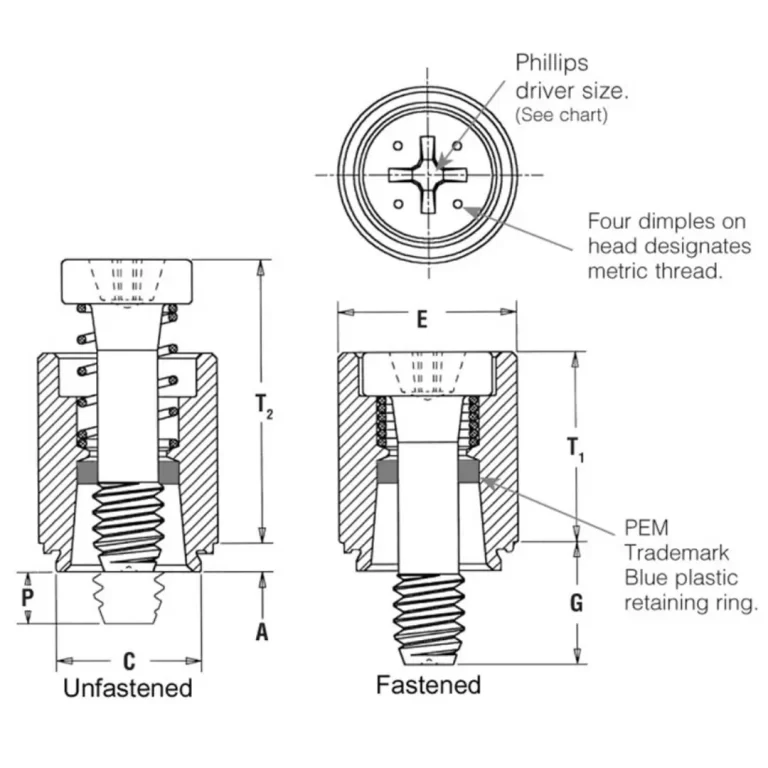

PFC2P PANEL FASTENERS

Thread Size	Type	Thread Code	Screw Length Code
.112-40 (#4-40)	PFC2P	440	40
.112-40 (#4-40)	PFC2P	440	62
.138-32 (#6-32)	PFC2P	632	40
			62
			84
.164-32 (#8-32)	PFC2P	832	50
			72
			94
.190-32 (#10-32)	PFC2P	032	50
			72
			94
.250-20 (1/4-20)	PFC2P	0420	60
			82
			04

Thread Size	Type	Thread Code	Screw Length Code
M3 x 0.5	PFC2P	M3	40
M3 x 0.5	PFC2P	M3	62
M4 x 0.7	PFC2P	M4	50
			72
			94
M5 x 0.8	PFC2P	M5	50
			72
			94
M6 x 1	PFC2P	M6	60
			82
			04

Packing & Delivery

Packing

Small items are packed in carton boxes, then into wooden pallets. Larger sizes are packed in wooden cases or according to customer requirements.

Delivery

Standard items in stock: 7-15 days
Custom production: 20-35 days depending on quantity
Urgent orders can be accommodated
