Professional Industrial Fastener Manufacturer & Supplier

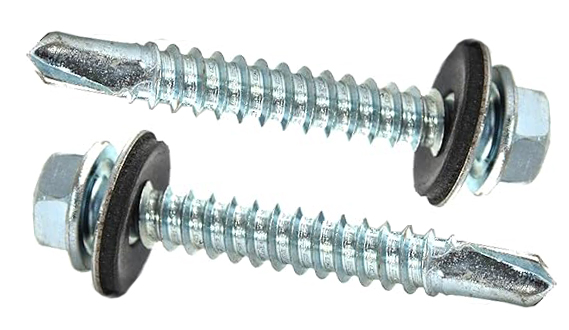

Type AB thread | # 3 point With the EPDM washer |
Material : | C1022 |
Coating: | Yellow Zinc, Zinc |
Dia | 4.8 mm | 5.5 mm | 6.3 mm |
Torsion Strength (LB/in.) | 61 min. | 92 min. | 150 min. |
Case Hardness (HV/0.3Kg) | 560 – 730 | 560 – 730 | 560 – 730 |
Drilling Time (Sec.) | 7.0 | 11.0 | 13.0 |
Drilling Thickness | 2 + 2 | 2 + 3 | 2 + 3 |
Dia | Length(L) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4.8 | 16 | 19 | |||||||||||
5.5 | -- | 19 | 25 | 35 | 45 | 55 | 65 | 75 | 90 | 100 | 125 | 135 | 150 |
6.3 |  –- |  –- | 25 | 35 | 45 | 55 | 65 | 75 | 90 | 100 | 125 | 135 | 150 |
Type AB thread | # 3 point, With metal bonded washer |
Material: | C1022 |
Coating: | Yellow Zinc, Zinc, Ruspert |
Dia | 4.8Â mm | 5.5Â mm | 6.3Â mm |
Torsion Strength (LB/in.) | 61 min. | 92 min. | 150 min. |
Case Hardness (HV/0.3Kg) | 560-730 | 560 – 730 | 560 – 730 |
Drilling Time (Sec.) | 7.0 | 11.0 | 13.0 |
Drilling Thickness | 2 + 2 | 2 + 3 | 2 + 3 |
Dia | Length(L) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
4.8 | 16 | 19 | |||||||||||
5.5 | -- | 19 | 25 | 35 | 45 | 55 | 65 | 75 | 90 | 100 | 125 | 135 | 150 |
6.3 |  –- |  –- | 25 | 35 | 45 | 55 | 65 | 75 | 90 | 100 | 125 | 135 | 150 |
Type AB thread | # 2 point |
Material: | C1022 |
Coating: | Zinc, Black Phosphate |
Dia | 4.2 |
Torsion Strength (LB/in.) | 39 min. |
Case Hardness (HV/0.3Kg) | 560 – 730 |
Drilling Time (Sec.) | 5.0 |
Drilling Thickness | 1.5 + 1.5 |
Lenght  (l) | ||||||
13 | 16 | 19 | 32 | 25 | 32 | 38 |
Type AB thread | # 2 point |
Material: | C1022 |
Coating: | Yellow Zinc, Zinc, |
Dia | 4.8Â mm | 5.5Â mm | 6.3Â mm |
Torsion Strength (LB/in.) | 61 min. | 92 min. | 150 min. |
Case Hardness (HV/0.3Kg) | 560-730 | 560 – 730 | 560 – 730 |
Drilling Time (Sec.) | 7.0 | 11.0 | 13.0 |
Drilling Thickness | 2 + 2 | 2 + 3 | 2 + 3 |
Dia | Lenghts (l) | ||||||
|---|---|---|---|---|---|---|---|
3.5 | 10 | 13 | 16 | 19 | - | - | - |
4.2 | - | 13 | 16 | 19 | 25 | 32 | 38 |
4.8 | - | 13 | 16 | 19 | 25 | 32 | 38 |
Type AB thread | # 2 point |
Material: | C1022 |
Coating: | Yellow Zinc, Zinc, |
Dia | 4.8Â mm | 5.5Â mm | 6.3Â mm |
Torsion Strength (LB/in.) | 61 min. | 92 min. | 150 min. |
Case Hardness (HV/0.3Kg) | 560-730 | 560 – 730 | 560 – 730 |
Drilling Time (Sec.) | 7.0 | 11.0 | 13.0 |
Drilling Thickness | 1 + 1 | 1 + 1 | 1 + 1 |
Dia | Lenghts (l) | ||||||
|---|---|---|---|---|---|---|---|
3.5 | 10 | 13 | 16 | 19 | - | - | - |
4.2 | - | 13 | 16 | 19 | 25 | 32 | 38 |
4.8 | - | 13 | 16 | 19 | 25 | 32 | 38 |
Thank you for clicking our product, and if you have any needs or requirements, please kindly contact us, we will reply ASAP.
E-mail: sales@yuanmaosh.com
Small items are packed in carton boxes, then into wooden pallets. Larger sizes are packed in wooden cases or according to customer requirements.
