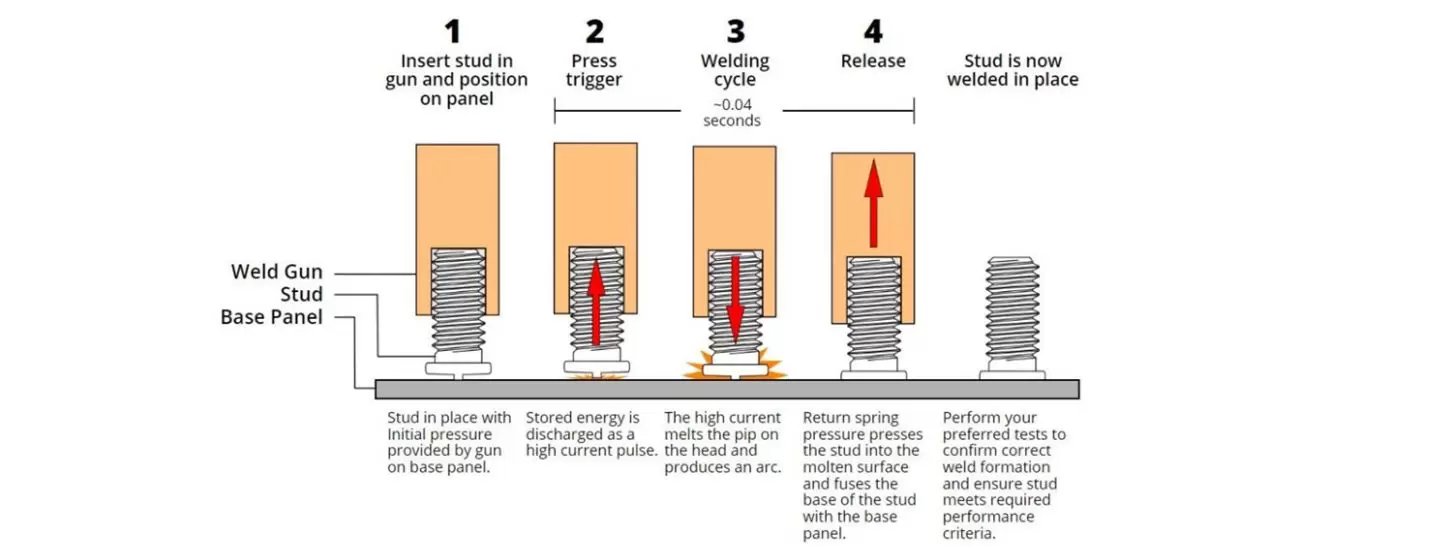

Shanghai Yuanmao FASTENER CO.,LTD provide solutions for Weld stud also. Available in both MS weld studs and Stainless steel SS304 A2 Weld studs, various lengths and thread sizes are available per customer-specific application and requirements. Weld studs are used in the Stud welding process. In this process, a metal stud is joined to a metal workpiece by heating both parts with an arc. Weld studs are as per DIN 32501 and ISO 13918 standardsÂ
DIA | M3 X 0.5 | M4 X 0.7 | M5 X 0.8 | M6 X 1.0 | M8 X 1.25 |
|---|---|---|---|---|---|
h | 0.60 | 0.60 | 0.70 | 0.80 | 1.00 |
d2 | 4.50 | 5.50 | 6.50 | 7.50 | 9.00 |
d1 | 0.55 | 0.55 | 0.80 | 0.80 | 1.00 |
Lengths (mm) | 8/10/12/15/ | 8/10/12/15/20 | 8/10/12/15/20/ | 8/10/12/15/20/ | 8/10/12/15/20/25/ |
20/25 | /25/30/35 | 25/30/35/40 | 25/30/35/40 | 30/35/40/45/50 |
Thank you for clicking our product, and if you have any needs or requirements, please kindly contact us, we will reply ASAP.
E-mail: sales@yuanmaosh.com
Small items are packed in carton boxes, then into wooden pallets. Larger sizes are packed in wooden cases or according to customer requirements.
