Open Type Blind Rivets

Material Carbon Steel, Stainless Steel

Standard DIN / ISO

Finish Zinc Plated, HDG, Black, Plain

Brand Yuanmao

Blind Rivet Open Type Blind Rivets

Inquiry Now Send Email

Product Description

Shanghai Yuanmao FASTENER CO.,LTD provide the basic blind rivets in all sizes and styles.Open Type Blind Rivets are made as per IFI-114, DIN, and ASME standards. Different head styles are available as dome head blind rivets, CSK head Blind Rivets, and Large Flange Blind Rivets. These blind rivets are made in 3 material grades :

Aluminium Blind Rivets
Available Grades: Aluminium 1100, 5050, 5052, 5056, 5154
Steel Blind Rivets –
Available Grades: Low Carbon Steel
Stainless Steel Blind Rivets
Available Grades: Stainless Steel 302, 304

The various diameters and lengths of Rivets are available as per customer applications

2.4 mm Blind Rivet (Lengths: 4.8 mm, 6.4 mm, 8.0 mm, 9.6 mm, 12.7 mm, 15.9 mm)
3.2 mm Blind Rivet (Lengths: 6.4 mm, 8. o mm, 9.6 mm, 12.7 mm, 15.9 mm, 19.3 mm, 25.4 mm)
4.0 mm Blind Rivet (Lengths: 6.4 mm, 8.0 mm, 9.6 mm, 12.7 mm, 15.9 mm, 19.3mm, 19.3mm)
4.8 mm Blind Rivets (Lengths: 6.4mm, 8. o mm, 6.4 mm, 12.7 mm, 12.7 mm, 19.3 mm 31.8 mm, 31.8 mm, 50.8 mm)
6.4 mm, Blind Rivets ( Lengths: 9.6 mm, 12.7 mm, 15.9 mm. 19.3mm, 25.4 mm)

Material
Rivet Body – Aluminium 1100, Mandrel – Steel
Rivet Body – Aluminium 5050, Mandrel – Steel
Rivet Body – Aluminium 5052, Mandrel – Steel
Rivet Body – Aluminium 5154, Mandrel – Steel
Rivet Body – Aluminium 5056, Mandrel – Steel
Rivet Body – Steel, Mandrel – Steel
Rivet Body – Stainless Steel, Mandrel – Stainless Steel
Rivet Body – Copper, Mandrel – Steel

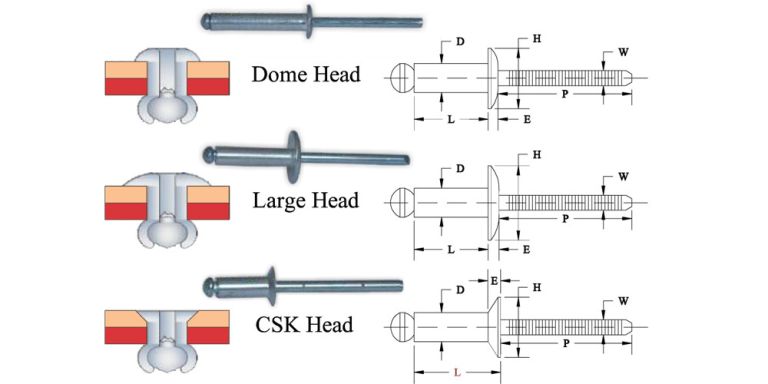

general purpose blind rivets

Key Features

Available in a range of size and materials.
Versatile for general fastening needs.
Strong, low cost fastenings.
Ideal for wide range of applications.

Open Type Blind Rivets
Nom Rivet Size (Inch)		Nom Rivet Size (mm)		Rivet Code	Hole Dia	Domed Head Dia		Head Height	Large Head Dia		Head Height	CSK 120°±2° Head Dia		Head Height	MandrelDia	MandrelProtrusion	Domed Head Grip Range	CSK 120° Head Grip Range
D	L	D	L			H		E	H		E	H		E	W	P
-0.2	Max.	-0.2	Max.		Min.~ Max.	Min.	Max.	Max.	Min.	Max.	Max.	Min.	Max.	Max.	Nom.	Min.	Min.~ Max.	Min.~ Max.
3/32	3/16	2.4	4.8	3-1	2.5~2.6	4.5	5.0	0.8	6.8	7.4	1.0	4.0	4.7	0.7	1.4	27.0	0.5 ~ 1.0	0.5 ~ 1.0
	1/4		6.4	3-2	2.5~2.6	4.5	5.0	0.8	6.8	7.4	1.0	4.0	4.7	0.7	1.4	27.0	0.5 ~ 1.6	0.5 ~ 1.6
	5/16		8.0	3-3	2.5~2.6	4.5	5.0	0.8	6.8	7.4	1.0	4.0	4.7	0.7	1.4	27.0	1.6 ~ 3.2	1.6 ~ 3.2
	3/8		9.6	3-4	2.5~2.6	4.5	5.0	0.8	6.8	7.4	1.0	4.0	4.7	0.7	1.4	27.0	3.2 ~ 4.8	3.2 ~ 4.8
	1/2		12.7	3-5	2.5~2.6	4.5	5.0	0.8	6.8	7.4	1.0	4.0	4.7	0.7	1.4	27.0	4.8 ~ 6.4	4.8 ~ 6.4
	5/8		15.9	3-6	2.5~2.6	4.5	5.0	0.8	6.8	7.4	1.0	4.0	4.7	0.7	1.4	27.0	6.4 ~ 9.6	6.4 ~ 9.6
1/8	1/4	3.2	6.4	4-1	3.3~3.4	6.0	6.6	1.0	9.1	9.9	1.6	5.3	5.9	0.8	1.9	27.0	0.5 ~ 1.6	0.5 ~ 1.6
	5/16		8.0	4-2	3.3~3.4	6.0	6.6	1.0	9.1	9.9	1.6	5.3	5.9	0.8	1.9	27.0	1.6 ~ 3.2	1.6 ~ 3.2
	3/8		9.6	4-3	3.3~3.4	6.0	6.6	1.0	9.1	9.9	1.6	5.3	5.9	0.8	1.9	27.0	3.2 ~ 4.8	3.2 ~ 4.8
	1/2		12.7	4-4	3.3~3.4	6.0	6.6	1.0	9.1	9.9	1.6	5.3	5.9	0.8	1.9	27.0	4.8 ~ 6.4	4.8 ~ 6.4
	5/8		15.9	4-5	3.3~3.4	6.0	6.6	1.0	9.1	9.9	1.6	5.3	5.9	0.8	1.9	27.0	6.4 ~ 9.6	6.4 ~ 9.6
	3/4		19.3	4-6	3.3~3.4	6.0	6.6	1.0	9.1	9.9	1.6	5.3	5.9	0.8	1.9	27.0	9.6 ~ 12.7	9.6 ~ 12.7
	1.0		25.4	4-7	3.3~3.4	6.0	6.6	1.0	9.1	9.9	1.6	5.3	5.9	0.8	1.9	27.0	16.0~19.0	16.0~19.0
5/32	1/4	4.0	6.4	5-1	4.1~4.2	7.5	8.3	1.27	11.3	12.4	1.9	6.8	7.5	1.0	2.4	27.0	0.5 ~ 1.6	0.5 ~ 1.6
	5/16		8.0	5-2	4.1~4.2	7.5	8.3	1.27	11.3	12.4	1.9	6.8	7.5	1.0	2.4	27.0	1.6 ~ 3.2	1.6 ~ 3.2
	3/8		9.6	5-3	4.1~4.2	7.5	8.3	1.27	11.3	12.4	1.9	6.8	7.5	1.0	2.4	27.0	3.2 ~ 4.8	3.2 ~ 4.8
	1/2		12.7	5-4	4.1~4.2	7.5	8.3	1.27	11.3	12.4	1.9	6.8	7.5	1.0	2.4	27.0	4.8 ~ 6.4	4.8 ~ 6.4
	5/8		15.9	5-5	4.1~4.2	7.5	8.3	1.27	11.3	12.4	1.9	6.8	7.5	1.0	2.4	27.0	6.4 ~ 9.6	6.4 ~ 9.6
	3/4		19.3	5-6	4.1~4.2	7.5	8.3	1.27	11.3	12.4	1.9	6.8	7.5	1.0	2.4	27.0	9.6~12.7	9.6~12.7
	1.0		25.4	5-7	4.1~4.2	7.5	8.3	1.27	11.3	12.4	1.9	6.8	7.5	1.0	2.4	27.0	16.0~19.0	16.0~19.0
3/16	1/4	4.8	6.4	6-1	4.9~5.0	9.0	10.0	1.52	15.2	16.5	2.3	8.5	9.2	1.3	2.8	27.0	0.5~1.6	0.5~1.6
	5/16		8.0	6-2	4.9~5.0	9.0	10.0	1.52	15.2	16.5	2.3	8.5	9.2	1.3	2.8	27.0	1.6~3.2	1.6~3.2
	3/8		9.6	6-3	4.9~5.0	9.0	10.0	1.52	15.2	16.5	2.3	8.5	9.2	1.3	2.8	27.0	3.2~4.8	3.2~4.8
	1/2		12.7	6-4	4.9~5.0	9.0	10.0	1.52	15.2	16.5	2.3	8.5	9.2	1.3	2.8	27.0	4.8~6.4	4.8~6.4
	5/8		15.9	6-5	4.9~5.0	9.0	10.0	1.52	15.2	16.5	2.3	8.5	9.2	1.3	2.8	27.0	6.4~9.6	6.4~9.6
	3/4		19.3	6-6	4.9~5.0	9.0	10.0	1.52	15.2	16.5	2.3	8.5	9.2	1.3	2.8	27.0	9.6~12.7	9.6~12.7
	1.0		25.4	6-7	4.9~5.0	9.0	10.0	1.52	15.2	16.5	2.3	8.5	9.2	1.3	2.8	27.0	16.0~19.0	16.0~19.0
	1 ¼		31.8	6-8	4.9~5.0	9.0	10.0	1.52	15.2	16.5	2.3	8.5	9.2	1.3	2.8	27.0	22.4~25.4	22.4~25.4
	1 ½		38.1	6-9	4.9~5.0	9.0	10.0	1.52	15.2	16.5	2.3	8.5	9.2	1.3	2.8	27.0	28.6~31.8	28.6~31.8
	2.0		50.8	6-10	4.9~5.0	9.0	10.0	1.52	15.2	16.5	2.3	8.5	9.2	1.3	2.8	27.0	31.8~35.0	31.8~35.0
1/4	3/8	6.4	9.6	7-1	6.5~6.6	12.0	13.3	2.0	18.2	19.8	2.7	11.6	12.3	1.5	3.8	31.7	3.2~4.8	3.2~4.8
	1/2		12.7	7-2	6.5~6.6	12.0	13.3	2.0	18.2	19.8	2.7	11.6	12.3	1.5	3.8	31.7	4.8~6.4	4.8~6.4
	5/8		15.9	7-3	6.5~6.6	12.0	13.3	2.0	18.2	19.8	2.7	11.6	12.3	1.5	3.8	31.7	6.4~9.6	6.4~9.6
	3/4		19.3	7-4	6.5~6.6	12.0	13.3	2.0	18.2	19.8	2.7	11.6	12.3	1.5	3.8	31.7	9.6~12.7	9.6~12.7
	1.0		25.4	7-5	6.5~6.6	12.0	13.3	2.0	18.2	19.8	2.7	11.6	12.3	1.5	3.8	31.7	16.0~19.0	16.0~19.0

Packing & Delivery

Packing

Small items are packed in carton boxes, then into wooden pallets. Larger sizes are packed in wooden cases or according to customer requirements.

Delivery

Standard items in stock: 7-15 days
Custom production: 20-35 days depending on quantity
Urgent orders can be accommodated
