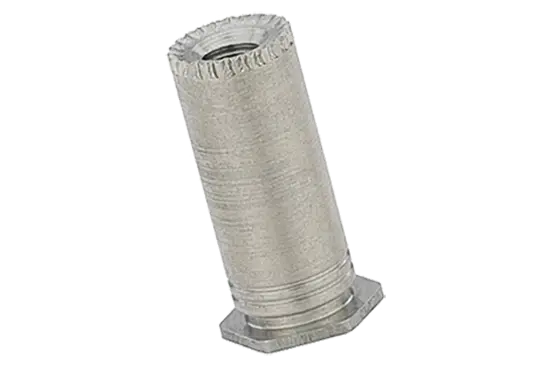

SOSG and SOAG Grounding Standoffs are specialized fasteners designed to solve electrical earthing challenges in sheet metal assembly. When standard standoffs are installed in anodized aluminum or painted steel, the coating acts as an insulator. SOSG/SOAG features unique cutting teeth that bite through these non-conductive layers to ensure a metal-to-metal connection.

Key Features:

• Reliable Grounding: Eliminates the need for secondary processes like masking or sanding off coatings before installation.
• Superior Conductivity: Designed to establish low-resistance electrical paths between the panel and the PCB/component.
• Permanent Installation: Like all clinching hardware, they become an integral part of the panel with high push-out resistance.

• Thru-hole Design: Allows for easy bolt insertion and inspection of thread engagement.



•
