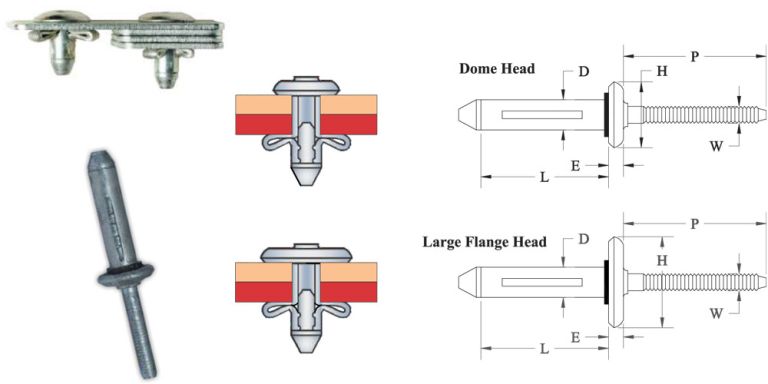

The B-tite rivet body folds into three separate legs forming a large blind-side head.This large bearing head evenly distributes the Bulb-Tite Rivet high clamp force in soft, thin, or brittle materials while providing high pull-through resistance. B-tite rivets generally come with a neoprene rubber washer. These are developed to solve application requirements in the pre-engineered metal building, roofing, and siding industry.
B- Tite Rivets are also called waterproof rivets
Key Features
| Bulb-Tite Rivet – Aluminium | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dome Head | |||||||||||
| Rivet Size (D x L) (mm) | Rivet Code | Hole Dia (mm) | Head Dia ( H ) (mm) | Head Thickness (mm) | Grip Range (mm) | Mandrel Protrusion (mm) | Mandrel Dia. (mm) | Tensile (Min.) | Shear (Min.) | ||
| D -0.15/+0.1 x L +0.5/-0.3 | (Min.) ~ (Max.) | (Min.) ~ (Max.) | ( E ) 0.2 | (Min.) ~ (Max.) | ( P ) (Min.) | ( W ) 0.10 | N | LBS | N | LBS | |
| 4.0 x 20.3 | 5-1 | 4.1 ~ 4.2 | 8.5 ~ 8.9 | 2.5 | 1.5 ~ 6.4 | 27.0 | 2.3 | 1050 | 236 | 2000 | 450 |
| 4.0 x 25.1 | 5-2 | 4.1 ~ 4.2 | 8.5 ~ 8.9 | 2.5 | 6.4 ~ 12.7 | 27.0 | 2.3 | 1050 | 236 | 2000 | 450 |
| 5.2 x 17.5 | 6-1 | 5.3 ~ 5.5 | 10.9 ~ 11.6 | 3.2 | 1.3 ~ 4.8 | 28.0 | 2.9 | 1950 | 438 | 2700 | 607 |
| 5.2 x 19.1 | 6-2 | 5.3 ~5.5 | 10.9 ~ 11.6 | 3.2 | 1.6 ~ 6.4 | 28.0 | 2.9 | 1950 | 438 | 2700 | 607 |
| 5.2 x 22.2 | 6-3 | 5.3 ~ 5.5 | 10.9 ~ 11.6 | 3.2 | 4.7 ~ 9.5 | 28.0 | 2.9 | 1950 | 438 | 2700 | 607 |
| 5.2 x 25.4 | 6-4 | 5.3 ~ 5.5 | 10.9 ~ 11.6 | 3.2 | 7.9 ~ 12.7 | 28.0 | 2.9 | 1950 | 438 | 2700 | 607 |
| 5.2 x 28.6 | 6-5 | 5.3 ~ 5.5 | 10.9 ~ 11.6 | 3.2 | 11.1 ~ 15.9 | 28.0 | 2.9 | 1950 | 438 | 2700 | 607 |
| 5.2 x 31.8 | 6-6 | 5.3 ~ 5.5 | 10.9 ~ 11.6 | 3.2 | 14.3 ~ 19.1 | 28.0 | 2.9 | 1950 | 438 | 2700 | 607 |
| 5.2 x 34.9 | 6-7 | 5.3 ~ 5.5 | 10.9 ~ 11.6 | 3.2 | 17.4 ~ 22.2 | 28.0 | 2.9 | 1950 | 438 | 2700 | 607 |
| 5.2 x 38.1 | 6-8 | 5.3 ~ 5.5 | 10.9 ~ 11.6 | 3.2 | 20.6 ~ 25.4 | 28.0 | 2.9 | 1950 | 438 | 2700 | 607 |
| 5.2 x 41.3 | 6-9 | 5.3 ~ 5.5 | 10.9 ~ 11.6 | 3.2 | 23.8 ~ 28.6 | 28.0 | 2.9 | 1950 | 438 | 2700 | 607 |
| 6.3 x 20.2 | 7-1 | 6.4 ~ 6.6 | 14.0 ~ 14.4 | 3.8 | 1.6 ~ 6.4 | 28.0 | 3.8 | 2500 | 562 | 4200 | 944 |
| 6.3 x 23.4 | 7-2 | 6.4 ~ 6.6 | 14.0 ~ 14.4 | 3.8 | 3.2 ~ 9.5 | 28.0 | 3.8 | 2500 | 562 | 4200 | 944 |
| 6.3 x 26.5 | 7-3 | 6.4 ~ 6.6 | 14.0 ~ 14.4 | 3.8 | 6.4 ~ 12.7 | 28.0 | 3.8 | 2500 | 562 | 4200 | 944 |
| 6.3 x 29.7 | 7-4 | 6.4 ~ 6.6 | 14.0 ~ 14.4 | 3.8 | 9.5 ~ 15.9 | 28.0 | 3.8 | 2500 | 562 | 4200 | 944 |
| 7.7 x 27.7 | 8-1 | 7.8 ~ 8.2 | 15.5 ~ 15.7 | 4.8 | 1.0 ~ 9.5 | 28.0 | 4.4 | 4850 | 1090 | 6650 | 1495 |
| Large Flange Head | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Rivet Size (D x L) (mm) | Rivet Code | Hole Dia (mm) | Head Dia ( H ) (mm) | Head Thickness (mm) | Grip Range (mm) | Mandrel Protrusion (mm) | Mandrel Dia. (mm) | Tensile (Min.) | Shear (Min.) | ||
| D -0.15/+0.1 x L +0.5/-0.3 | (Min.) ~ (Max.) | (Min.) ~ (Max.) | ( E ) 0.2 | (Min.) ~ (Max.) | ( P ) (Min.) | ( W ) 0.10 | N | LBS | N | LBS | |
| 7.7 x 27.7 | 8-1 | 7.8 ~ 8.2 | 18.3 ~ 19.4 | 5.3 | 1.1 ~ 9.5 | 28.0 | 4.4 | 4850 | 1090 | 6650 | 1495 |
| 7.7 x 34.0 | 8-2 | 7.8 ~ 8.2 | 18.3 ~ 19.4 | 5.3 | 6.4 ~ 15.9 | 28.0 | 4.4 | 4850 | 1090 | 6650 | 1495 |
Material
Key Features
| Bulb-Tite Rivet – Steel | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dome Head | |||||||||||
| Rivet Size (D x L) (mm) | Rivet Code | Hole Dia (mm) | Head Dia ( H ) (mm) | Head Thickness (mm) | Grip Range (mm) | Mandrel Protrusion (mm) | Mandrel Dia. (mm) | Tensile (Min.) | Shear (Min.) | ||
| D -0.15/+0.1 x L +0.5/-0.3 | (Min.) ~ (Max.) | (Min.) ~ (Max.) | ( E ) 0.2 | (Min.) ~ (Max.) | ( P ) (Min.) | ( W ) 0.10 | N | LBS | N | LBS | |
| 5.2 x 19.1 | 6-2 | 5.3 ~5.5 | 10.9 ~ 11.6 | 3.2 | 1.6 ~ 6.4 | 28.0 | 2.9 | 2890 | 649 | 3890 | 874 |
| 5.2 x 22.2 | 6-3 | 5.3 ~ 5.5 | 10.9 ~ 11.6 | 3.2 | 4.7 ~ 9.5 | 28.0 | 2.9 | 2890 | 649 | 3890 | 874 |
| 5.2 x 25.4 | 6-4 | 5.3 ~ 5.5 | 10.9 ~ 11.6 | 3.2 | 7.9 ~ 12.7 | 28.0 | 2.9 | 2890 | 649 | 3890 | 874 |
| 5.2 x 28.6 | 6-5 | 5.3 ~ 5.5 | 10.9 ~ 11.6 | 3.2 | 11.1 ~ 15.9 | 28.0 | 2.9 | 2890 | 649 | 3890 | 874 |
| 5.2 x 31.8 | 6-6 | 5.3 ~ 5.5 | 10.9 ~ 11.6 | 3.2 | 14.3 ~ 19.1 | 28.0 | 2.9 | 2890 | 649 | 3890 | 874 |
| 6.3 x 20.2 | 7-1 | 6.4 ~ 6.6 | 14.0 ~ 14.4 | 3.8 | 1.6 ~ 6.4 | 28.0 | 3.8 | 4550 | 1022 | 8200 | 1843 |
| 6.3 x 23.4 | 7-2 | 6.4 ~ 6.6 | 14.0 ~ 14.4 | 3.8 | 3.2 ~ 9.5 | 28.0 | 3.8 | 4550 | 1022 | 8200 | 1843 |
| Bulb-Tite Rivet Monel – Stainless Steel | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dome Head | |||||||||||
| Rivet Size (D x L) (mm) | Rivet Code | Hole Dia (mm) | Head Dia ( H ) (mm) | Head Thickness (mm) | Grip Range (mm) | Mandrel Protrusion (mm) | Mandrel Dia. (mm) | Tensile (Min.) | Shear (Min.) | ||
| D -0.15/+0.1 x L +0.5/-0.3 | (Min.) ~ (Max.) | (Min.) ~ (Max.) | ( E ) 0.2 | (Min.) ~ (Max.) | ( P ) (Min.) | ( W ) 0.10 | N | LBS | N | LBS | |
| 6.3 x 20.2 | 7-1 | 6.4 ~ 6.6 | 14.0 ~ 14.4 | 3.8 | 1.0 ~ 6.4 | 28.0 | 3.8 | 4400 | 989 | 7800 | 1753 |
| Bulb-Tite Rivets Of All Head Types optionally Available With Washer, too. | |||||||||||
