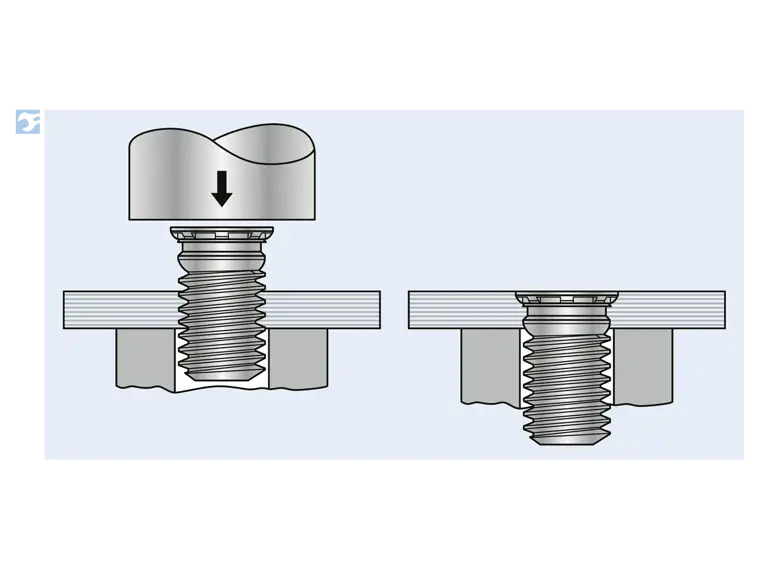

Self-Clinching Flush Low-Displacement Head Studs (FHL/FHLS Series) are engineered for applications where space is extremely limited or where the stud must be installed very close to the edge of the panel. Standard clinch studs can cause the edge of a thin sheet to bulge or deform due to the volume of metal displaced during installation. The FHL series solves this by utilizing a specialized head geometry that requires significantly less metal "cold-flow" to secure the fastener.

Key Technical Advantages:

• Close-to-Edge Mounting: Can be installed much closer to the edge of a sheet than standard FH studs without causing edge bulging.
• Minimal Sheet Distortion: The low-displacement design reduces internal stresses in the host material, maintaining the flatness of precision-engineered panels.
• High-Density Packaging: Smaller head diameter allows for tighter grouping of fasteners, perfect for compact electronic chassis and high-density PCB layouts.
• Flush Finish: Provides a completely smooth and flush surface on the reverse side of the panel, just like the standard FH series.
